Mashing Bath
Fully Automatic Digital Mashing Bath equipment with 2,4,6,8 & 10 jar
A mashing bath is designed for the process of mashing grains at 45°C to 72°C and converting it into sugar from enzymatic reactions. Different enzymes break down at different temperatures and require the optimal temperature to break down and convert them into sugar. Yatherm Scientific manufactures a Mashing bath for malt and breweries companies for its enzymatic reactions.

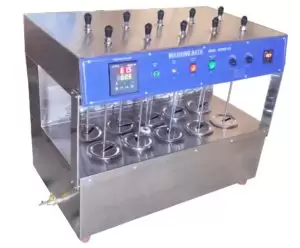

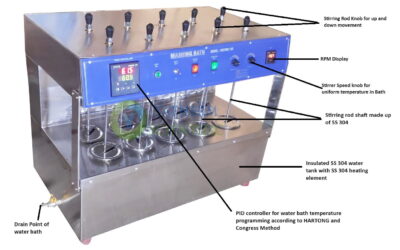

Most Importantly Yatherm Mashing bath follows the Hartong and Congress procedure with the availability of jars from 4 to 12. The Bath of the equipment is made up of complete SS 304 with a motorized stirrer on top which is regulated by a controller. Yatherm Scientific offers a high-quality Malt Mashing bath with a highly accurate microprocessor-based controller.
Yatherm scientific offers & supplies the best price in India for Malt mashing baths. We have a wide variety of standard models with customized models in terms of the stirrer and outer and inner body construction. Digital timer, HMI, PLC & Chart recorder With USB port or RS 232 options are also available in our all models. We are the leading exporter of the Mashing bath in India. We have many clients in Europe, the USA, Russia, Middle East Asia & African Countries. Yatherm design Machine as per European electrical standard so post your inquiries and get the best price of quotation & timely delivery.
Application:
- Laboratory
- Malthouses
- Breweries
- Research
- Food Industry
Working principle: Congress-Method & Hartong-method
- CONGRESS,
- HARTONG 20,
- HARTONG 45,
- HARTONG 65,
- HARTONG 80,
- ASBC,
- PROFILE or THERMOSTAT
Features:
| High performance | Durable nature | Efficient working |
| Working chamber/fabricated out of corrosion-resistant/rust free Stainless steel sheet | Digital Revolution per minute indicator | Incorporated with Solid-state Digital Temperature controller cum Indicator |
| Provided complete with stirrer and beaker | Suitable to operate on 220/230 volts, 50 Hertz, AC supply | Optionally available with Programmable version along with Digital Timer |
| Low-level water cut out | User-Friendly | RPM display |
TECHNICAL SPECIFICATIONS
Model | ENZYMO 4S | ENZYMO 6S | ENZYMO 8S | ENZYMO 10S |
| Beakers | 4 | 6 | 8 | 10 |
| Temperature | Up to 100 °C | |||
| Temperature accuracy | ±0.2°C | |||
| Thermometer | PT 100 | |||
| Temperature controller | PID controlled | |||
| Stirrer | Heavy-duty motor with SS shafts | |||
| Mixer Speed | 0,100,200 R.P.M. | |||
| Beaker capacity | 100ml, 250ml , 550 ml & 1000ml (According to the customer requirement) | |||
| RPM Display | LED Display | |||
| Stirrer controller | Rotary type variable speed controller | |||
| Working chamber | SS 304 | |||
| External body | PCRC/SS 304 | |||
| Alarm | Audio / visual alarm | |||
| Power supply | Single Phase 220 V/110 V – 50/60 Hz (frequency) | |||
| Choice of Methods | Congress: Mashing by temperature program Hartong: Mashing at constant temperature (20°, 45°, 65°, or 80° C) | |||
| Optional | Profile controller, Digital timer, RS 232 PC interface, HMI color touch screen controller, Specific jar capacity, USB port | |||
Yatherm Mashing Bath comes with a digital Programmable Controller and RPM display with a replaceable guarantee of the controller. Our main priority is to satisfy our customer’s after-sales support & service.
